3d facial skin analysis, Janus Pro Sunlike The Sunlike LED most like the sun

Shining like the sun

Download Catalog

Download Proposal

Completely

new

design

Gold Ring

The metal-feeling gold ring
is oval and embellishes
the entrance of
the filming space.

PANTONE 407 C

With a toned down brown color,
it perfectly matches
white and gold to create
a luxurious atmosphere.

White Pearl Body

It is a glossy material
with subtle pearls in white,
reminiscent of clean skin.
The overall shape has a soft curve
that makes the edge
look more comfortable.

Hinge lines

The curved shape gives
a soft feeling and
the wing-like shape gives
a balanced sense of stability.

Images upgraded

four light sources

Normal Light

Cross Polarized light

Parallel Polarized light

UV light

Right

Front

Left

Observe the face in three dimensions

Sunlike LED

Most Like the Sun
CRI 95/ TM-30 96

CRI is a numerical representation of
how accurately a light source can represent
colors compared to the sun.
The CRI of the Sun is 100 and
the CRI of the typical LED
we can easily see is only 70 to 80.
The SunLike LED is the closest premium LED
to the sun to capture accurate color of skin
and extract reliable data.

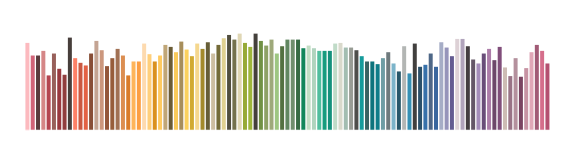

Typical LED

CRI

/ Rf(TM-30)

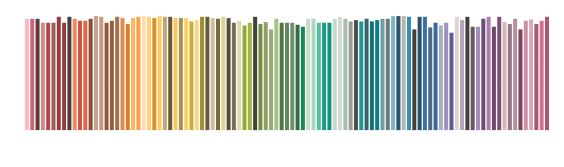

SunLike LED

3d facial skin analysis sunlike spectrum

CRI

/ Rf(TM-30)

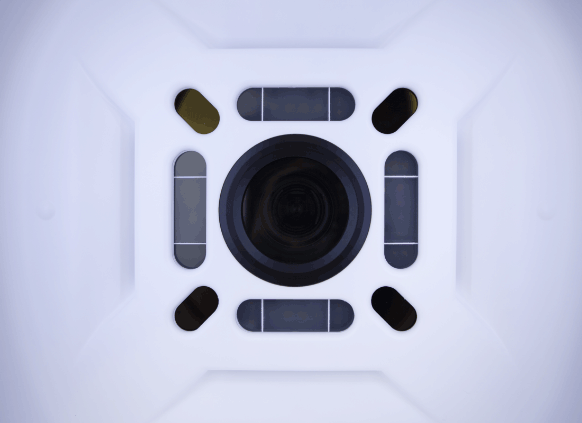

Differentiated

light source design

seeking perfection

Patent registration (No. 10-2429443)

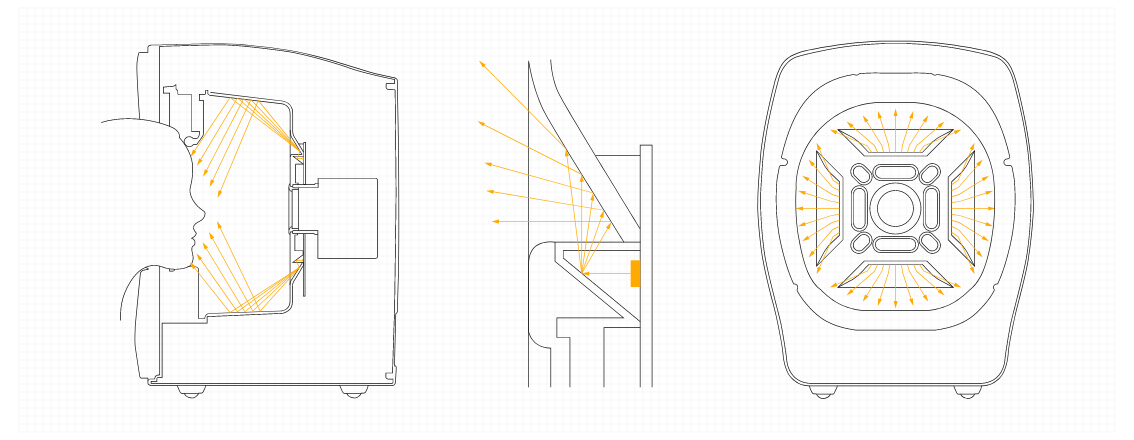

Direction of light source, location, and angle of the light source
is an essential element of photography to obtain big data.
It was built with optimal design after tens of thousands of tests.
The filter that determines the type of light source
also gives perfect brightness with the exact size and thickness.

light source design

UV light source 385nm

without worrying,
even if it touches your skin

UV light sources should be used to photograph pigmentation, sebum, and porphyrin,
and the closer the wavelength of light is to 400 nm, the more luminous the porphyrin is.
However, exposure to UV light for a long time can be harmful to the skin.
The UV light source at 385 nm is close to visible light and relatively harmless
to the human body. Also, you can hardly feel the heat from ordinary UV light sources.

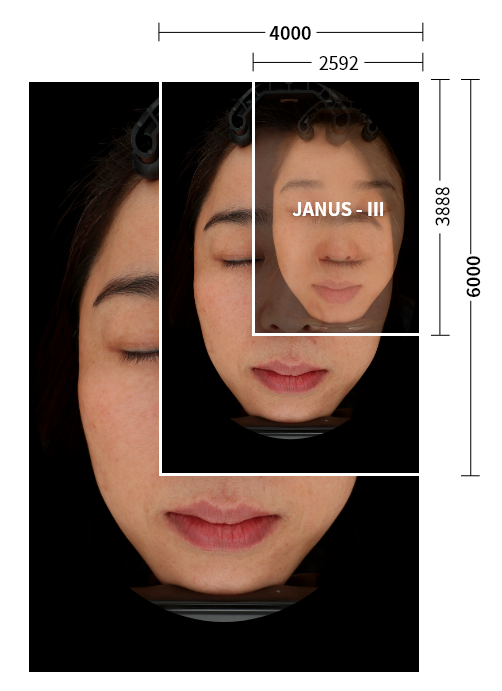

Improved original photo size to

4000 x 6000 px

The size of the original picture determines the quality of the analysis.
It analyzes 24.1 million pixels in high-definition image
and can be observed by zooming to 200% (8000 x 12000px).
Check out the skin that is closer to reality on the screen.

New standard for skin analyze

Skin texture

Patent registration (No. 10-2251700)

A new standard for skin analysis has been added.
Even clean skin without skin trouble and wrinkles
can look rough due to various factors.
It accurately analyzes the skin texture
that can be missed by the naked eye
and shows the skin condition more realistically.

Various analysis items including skin texture are provided.
Pore, wrinkles, nasolabial folds, elasticity, jaw angle,
pigmentation, UV pigmentation, skin tone, skin texture, redness,
sebum, porphyrin,moisture in total 13types

Self-sterilization

for everyone's safety

Hygiene is important because it is an equipment
used by many customers.
Use the industry's first sterilizing tool to make sure
you manage to any harmful bacteria/virus.
Always (UV-A) / Focused Sterilization (UV-C) Safely managed
in two modes.

Voice support

makes it easier for both callers and clients

The guide voice is output from the speaker of the equipment
so that the shooting process is carried out naturally.
The counselor can focus on the camera preview
and the customer will also take a comfortable picture.

elasticity skin analysis machine gray card

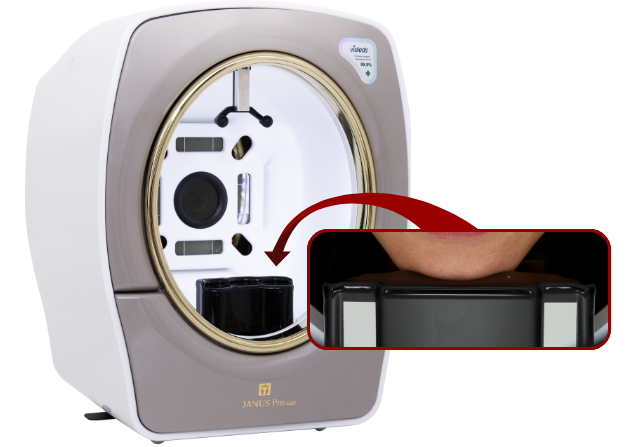

Brightness retention device

that adds expertise to shooting

Patent registration (No. 10-2462061)

Due to environmental factors, the brightness can vary every time.
The same brightness is always required to derive accurate image data.
We developed a brightness maintenance device by applying Gray Card,
a photography technique that has been used by experts for a long time.

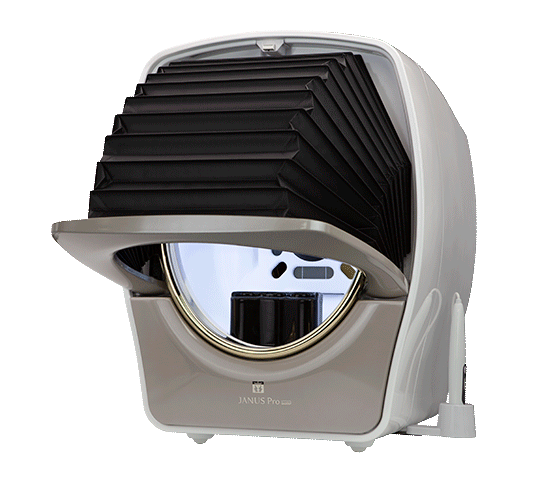

Rugged hood to

block out the light

with easy operation

It was made of dustproof and waterproof materials
after a durability test.
It is a classic design reminiscent of
an early-type camera obscura,
and it is soft and easy to operate.
After using it, you can fold it lightly
with one touch to store it.

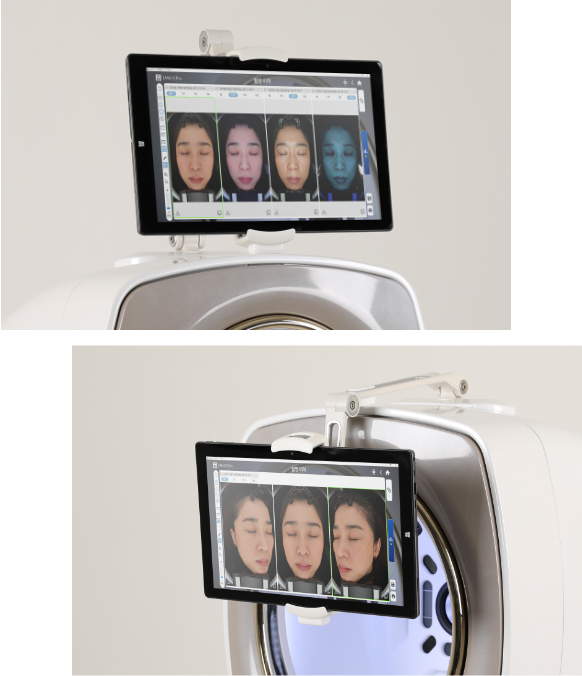

Starting to utilize space efficiently
by using

tablet hangers

If it's a small space to install a desktop, add a tablet holder.
Use 100% of your space with your tablet PC and your hangout.
The cradle can be operated in a vertical direction
to secure it to the front of the equipment or to place it on top.

You can easily disconnect your tablet PC and charge it
by connecting it to the equipment with a cable.
Charging cables are provided in magnetic form.

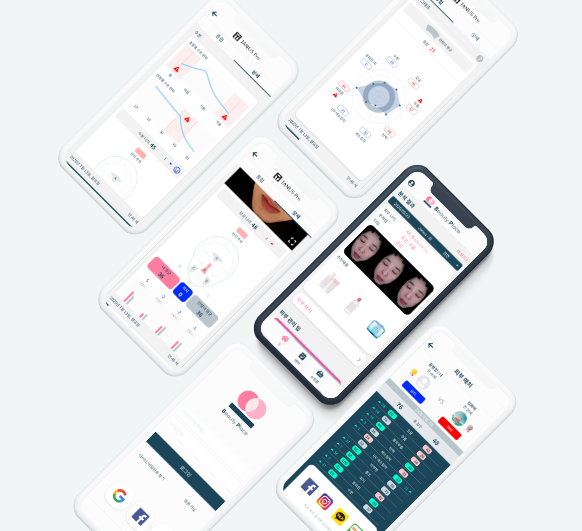

From analysis result confirmation to shopping
Skin care starting with

Beauty Platform

The Beauty Place app lets you check the analysis results
and go to the purchase link of the store you visited.
You can check all the data as a result of the skin analysis equipment,
and you can compare it because all the records of the rounds remain.
Through the app, you can get interested in the skin
through detailed analysis, and additional functions
such as skin care tips and skin matches also attract interest in the skin.

Maintain

complete security

without leakage of sensitive information.

Patent registration (No. 10-2091388)

There are more and more places where personal sensitive information
is required, and people's anxiety is growing.
While JANUS requires some sensitive information for custom skin analysis,
it maintains complete security against ransomware and viruses
with its own security maintenance and encryption technology
(patent registration completed).

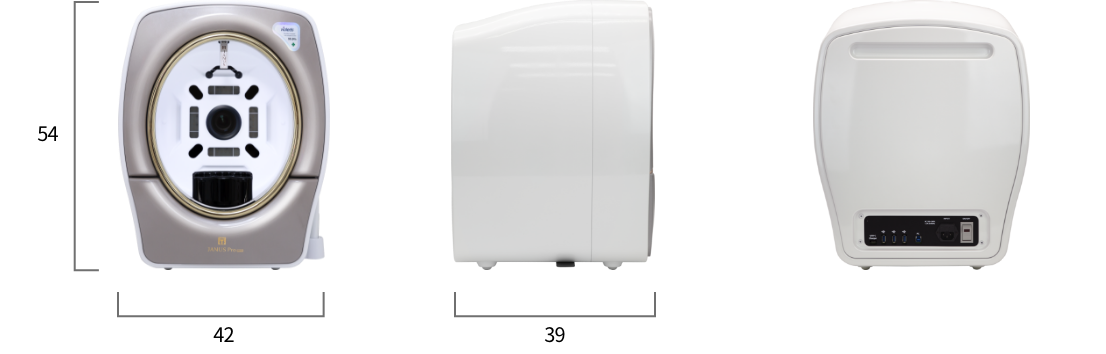

Specification

Unit : cm

Camera

Canon EOS 200D II DSLR Camera

Pixels

24.1 Mega Pixel

Light

Sunlike LED & 385 UV LED / 4-STL Filter

Dimension

42(W) x 39(D) x 54(H) / 10.4kg

Analysis Sections

Pore / Wrinkle / Nasolabial Fold / Elasticity / Jawline Angle / Spot(Polarized, UV) / Skin texture /
Skin tone / Redness / Sebum + Porphyrin / Moisture 13 Sections

Windows® 8/10/11 (64-bit), Not supported on ARM-based processors

Resolution

Supports all monitor resolutions (16:9 widescreen monitor recommended)

Languages

Korean, English, Japanese, Chinese(Simplified/Traditional), Russian, Vietnamese, Spanish,
German, French, Portuguese, Italian, Hungarian, Thai, Indonesian, Arabic, Mongolian, Bulgarian, Turkish, Hebrew, Serbian (Total of 21)

Program

New Image Shooting
It takes the customer's face images 4 times
Moisture Checking
It measures moisture by the areas (must be connected by mosture checker)
Zone Setting
It sets the position of the 10 areas and the jaw line.
Total Result
It provides a comprehensive view of the customer's skin analysis.
Pore
It analyzes pores in detail.
Wrinkle
It analyzes wrinkles in the forehead, eyes, and palm areas in detail.
Elasticity
It measures the elasticity figures by images for the first time in the industry
Spot
It analyzes the image of nasolabial fold taken by polarized light.
Skin Tone
It analyzes the bright and dark areas of the skin by comparing them.
Redness
It analyzes redness in detail.
Sebum
It analyzes the sebum and porphyrin taken by UV light.
QR Code
the analysis results are sent to your smartphone by JANUS application
Recommended Cosmetics Products
You can register and sell your product.
Image Record
You can compare images by light sources and inquire the history.
Image Analysis
taken images can be measured using several tools.

New Image Shooting
Moisture Checking
Zone Setting
Total Result
Pore
Wrinkle
Elasticity
Spot
Skin Tone
Redness
Sebum
QR Code
Recommended Cosmetics Products
Image Record
Image Analysis
